Automatic Loose Terminal Vibration Bowl Feeder Single Lug Crimping Machine X-CM103A
Price in reward points: 4400
- Inquiry Email: kevin@xmjw.ltd
- Product Code: CN230808693873
- Availability: 500

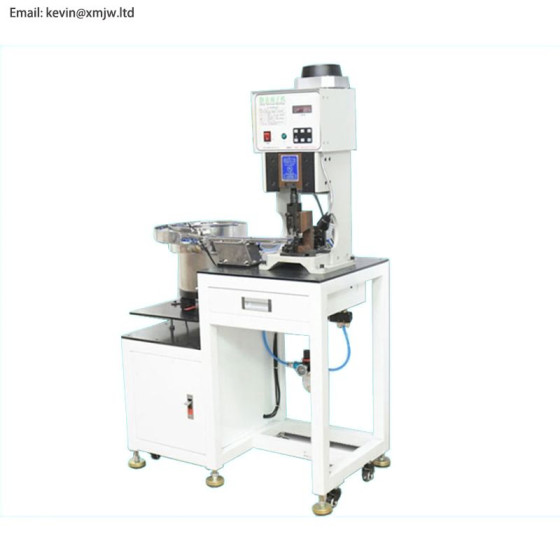

X-CM103A Automatic loose terminal crimping machine with vibration bowl feeder, Single lug crimping machine
Product Description
Feature
1.Based on the 2T terminal crimping machine,it adopts cassette mould which is easily changed.
2.It's controlled by micro-computer CMOS chip,with humanity program-design,which is more safe and reliable.
3.By replacing expensive reel termainal,the loosing terminal are more economy.
4.It adpots centrifugal libration feeding,frequency conversion speeding adjusting ,cylinder precision location,and unite
connecting satandard.
5.Compared with the reel terminals,the running speed of the loose terminals can be the same,and the later should be more
labor-saving and economy,also the cost performance takes more advangates.
6.It adopts the special moving wheels,which make the moving more convenient.
7.If it needs,it can be used as 2T crimping machine,allocated with 800.or 2000type,side-feed and rear-feed mould.
2.It's controlled by micro-computer CMOS chip,with humanity program-design,which is more safe and reliable.
3.By replacing expensive reel termainal,the loosing terminal are more economy.
4.It adpots centrifugal libration feeding,frequency conversion speeding adjusting ,cylinder precision location,and unite
connecting satandard.
5.Compared with the reel terminals,the running speed of the loose terminals can be the same,and the later should be more
labor-saving and economy,also the cost performance takes more advangates.
6.It adopts the special moving wheels,which make the moving more convenient.
7.If it needs,it can be used as 2T crimping machine,allocated with 800.or 2000type,side-feed and rear-feed mould.
Specification
Model | X-SC003A | ||
Dimension | 460*850*1260(MM) | ||
Voltage | AC220V/50HZ | ||
Weight | 160KG | ||
Consumed Power | Motor:250W, Working lamp:60W, | ||
vibrating plate:120W | |||
Crimping capacity | 2.0T | ||
Stroke of the slide block | 30MM | ||
Crimping times | 120PCS/MIN | ||
Closing height | 126MM | ||
Adjust of closing height | 10MM | ||
Recommend Products
Packing & Delivery
Normally the wire cutting stripping machine is packed by paper box, if you need wooden boxes, we can also provide.
Company Profile
We are Specialized In manufacturing cable wire cutting and stripping machine, terminal crimping machine and other wire harness machine more than 10 years. If you have any requirements, you cansend us your requests, we can send you solution very quickly.
FAQ
| Brand Name | X cable Tech |
| Crimping force | 1.5T(1T/2T/3T/4T/8T) |
| Dimension | 450*800*1200(MM) |
| Function | Crimping Terminal |
| Model Number | X-CM103A |
| Packing | Plywood |
| Place of Origin | Guangdong;China |
| Power | 0.35 - 1.5 kW |
| Stroke | 40 mm |
| Terminal type | Loose terminal |
| Usage | crimping |
| Voltage | 110V/220V |
| Warranty | 1 Year |
| Weight | 120kg |
Tags: Loose Terminal Crimper, Vibration Bowl Feeder, X-CM103A
