CNC 6040 4 Axis Metal Router 3040 2.2KW 3D Rotary Axis Wood Carving Engraving Machine PCB Milling USB Port with Water Tank

Price in reward points: 2852

Brand: unbranded
Product Code: CN230811840780
Availability: 720000

Size

Color

- +

CNC 6040 4 Axis Metal Router 3040 2.2KW 3D Rotary Axis Wood Carving Engraving Machine PCB Milling USB Port with Water Tank

Water tank is the requisite for engraving jade and metal on engraver;
The tank is made of 304 stainless steel, stable and beautiful;
Features:
a. The water tank has integrated low frame which can be removed
b. The machine with installation of water tank , before shipment, has done a good deal of water leak-proof treatment.
If you just buy a water tank, you need install it yourself and do the water leak-proof treatment;

MODEL	CNC 3040/6040
Axis	3axis /4axis
Interface	LPT and USB2 IN 1
Toolauto-checking	Yes
Type of screw	1605 Ball screw
Machine Dimensions:	3040:660X570X450mm 6040:860X690X550mm
Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	3040:300x400mm 6040:600X400mm
Z-Axis Stroke:	3040:60mm 6040:80mm option Engraving depth depends on the length of the tool edge
Acceptable material thickness:	3040:120 mm 6040:150 mm
Rail type:	Chromeplate shaft+Linear Bearings,Surface hardening 61HRC
Spindle motor:	1500W/ 2200W VFD water cooling spindle
Collet type:	1.5KW ER11,1/8"(3.175mm) Collet/ 2200W ER16,
Stepper motor and drive:	two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed :300-3000mm/min)
Repeat positioning Accuracy:	≤0.03mm
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt

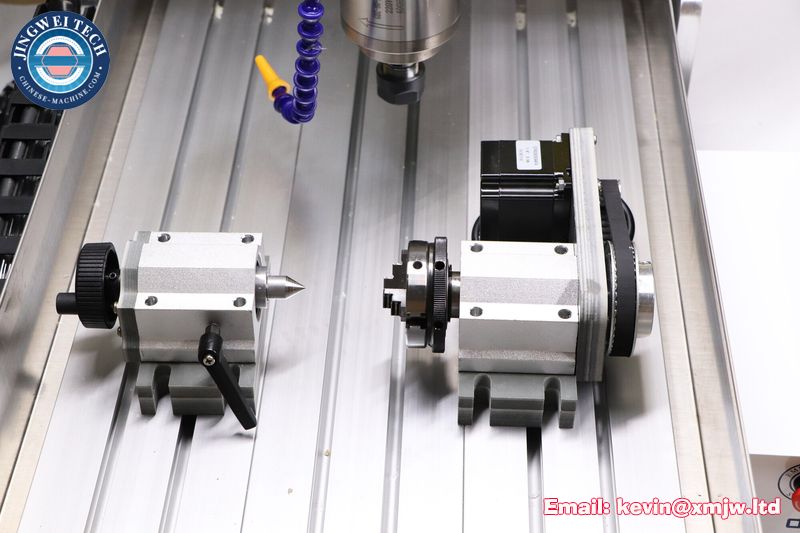

Rotation Axis (4th Axis) Description:	Chuck Size: 50mm self-centering chuck Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg
