Double Wire Cutting Stripping Twisting Machine 6mm2 X-CS102NX

0 reviews / Write a review

Price in reward points: 2200
  • Inquiry Email: kevin@xmjw.ltd
  • Product Code: CN230808733321
  • Availability: 500

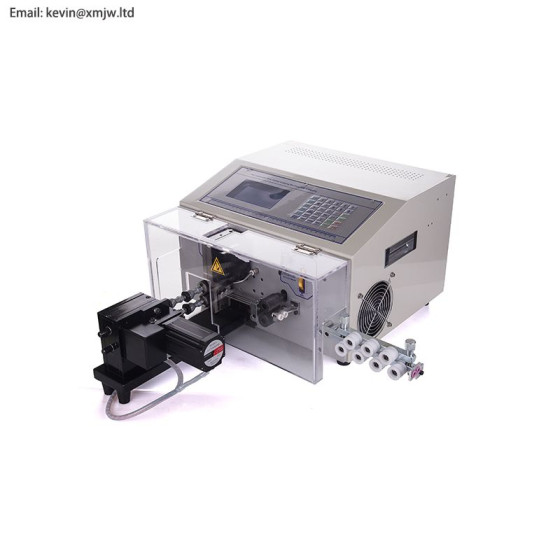

X-CS102NX 6mm2 Automatic wire cutting and stripping Twisting machine ,Double wire cutter stripper and twister
Product Description
Specification
Introduction

This machine is mainly suitable for 0.1-6mm2 smaller wire processing . it suites for industries electronic products, electric appliances, new energy industry, car industry , toys , and other wire harness applicances etc.

Features

High precision and productivity solutions for wire cable cutting and stripping. Easy to operate program and low maintenance.

Safety protection.
Plastic Protection shell is available，automatic wire feeding machine is available.

Technical Details
Model Number
X-CS102NX
Name
Automatic wire cutting and stripping machine
Cutting Length
1-9999mm
Stripping Length
Front: 15mm; Rear: 35mm
Voltage
220V/110V
Power Rate
200W
Cutting Tolerance
(0.2+/- 0.002 by L) mm
Cutting Stripping wire core section
One wire:  0.1-6mm2
Two wires： 0.1-2.5mm2
Optimal stripped wire:
 PVC//silica gel line , Glass fiber cables, etc
The blade material:
hard tungsten steel
Output
 L = 100 mm, 5000-10000 PCS/h (high yield)
Weight
40KG
Dimension
390 x350x255mm
Warranty
1 year
Brand NameX cable Tech
Capacity0.1~6mm2; 0.1~2.5mm2
ConduitOD 6mm
Cutting length1-9999mm
Dimension390*350*255mm
FunctionFor stripping; For cutting
Model NumberX-CS102NX
Place of OriginGuangdong;China
Power450W
Stripping lengthFront 0 - 15mm ; Rear: 0-35mm
UsageMultifunctional
Voltage110V/220V
Warranty1 Year
Weight40kg
