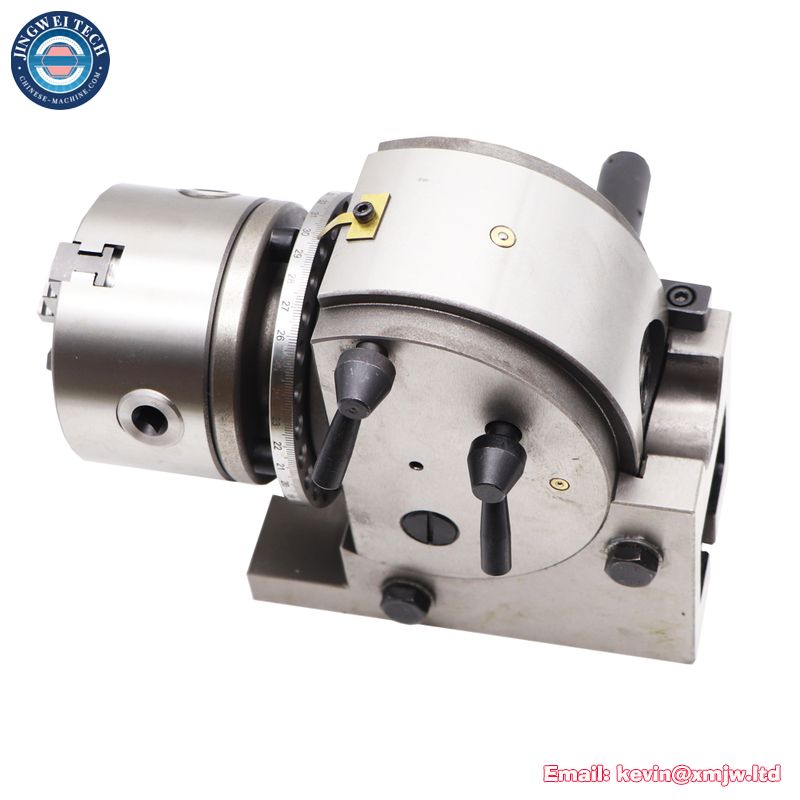

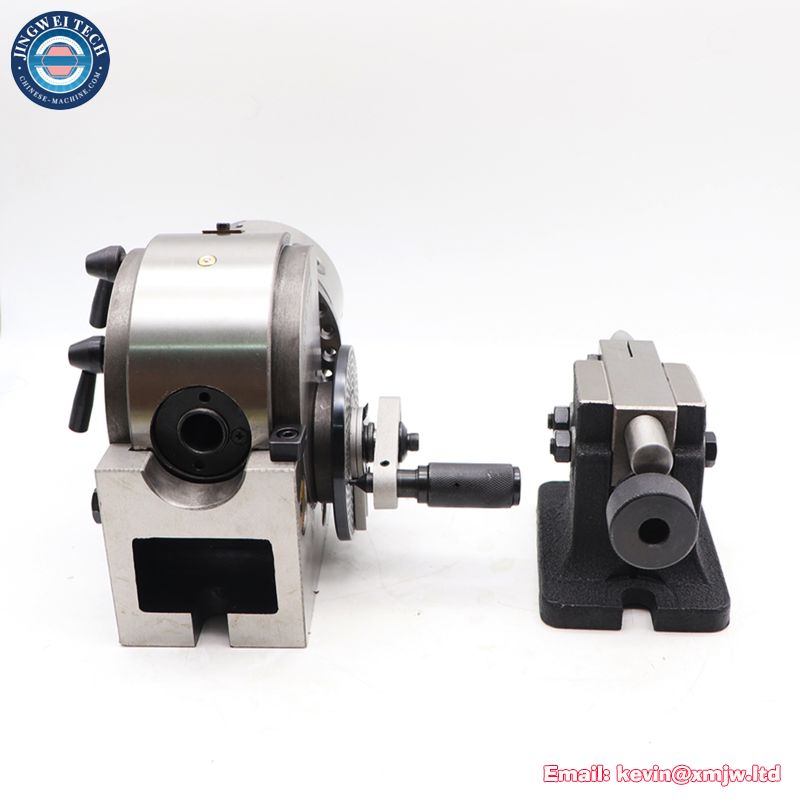

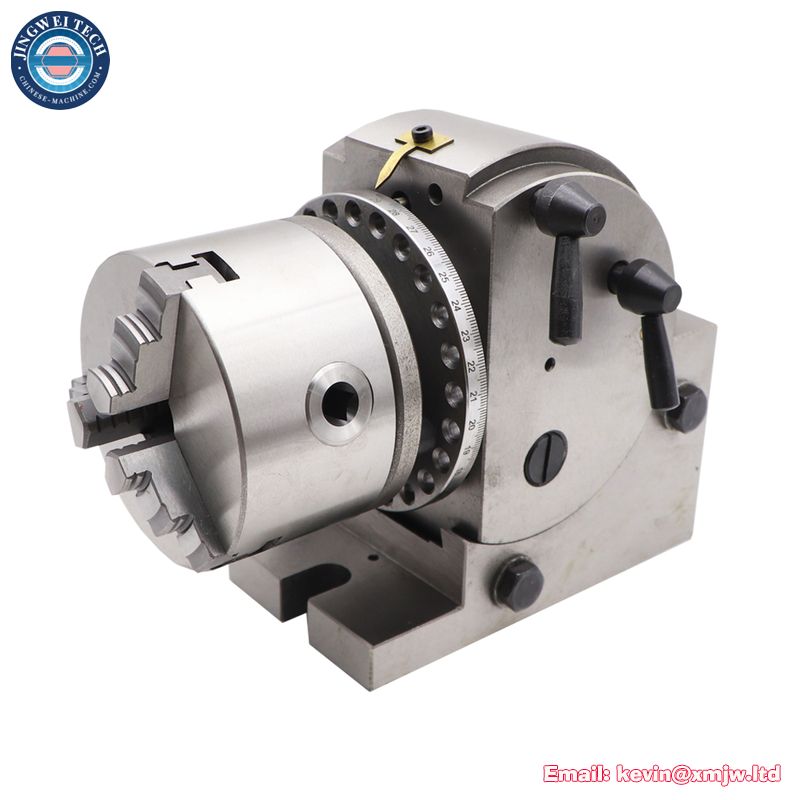

Indexing CNC Rotary Axis Dividing Head BS Series

CNC Dividing Head BS-1 BS-2 4" 5" 6" Indexing CNC Rotary Axis 3 Jaw 160mm 200mm Chuck Tailstock for CNC Router Rotary Table

Description:

This is our semi-universal dividing head by using dividing scale ring, vernier, locating pin, index plate and change gear, workpieces placed can be divided into equal partitions according to your demand. It able to complete gear, face and flute processing without need of accessories. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. 3 dividing plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.

Features

Made with high strength FC30 cast iron

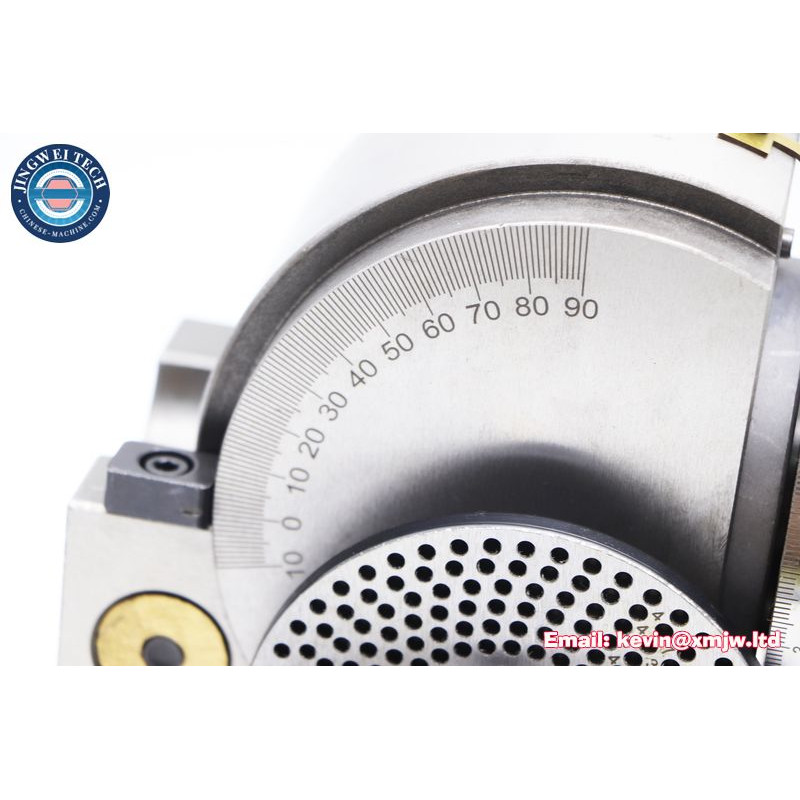

Adjustable tilt angle 0-90 degrees

Reduction ratio 1 ： 40

•User-Friendly Machine

•Direct and Indirect Dividing

•Professional Precise Division

•Semi-Universal Dividing Head

•100% Brand New with Good Quality

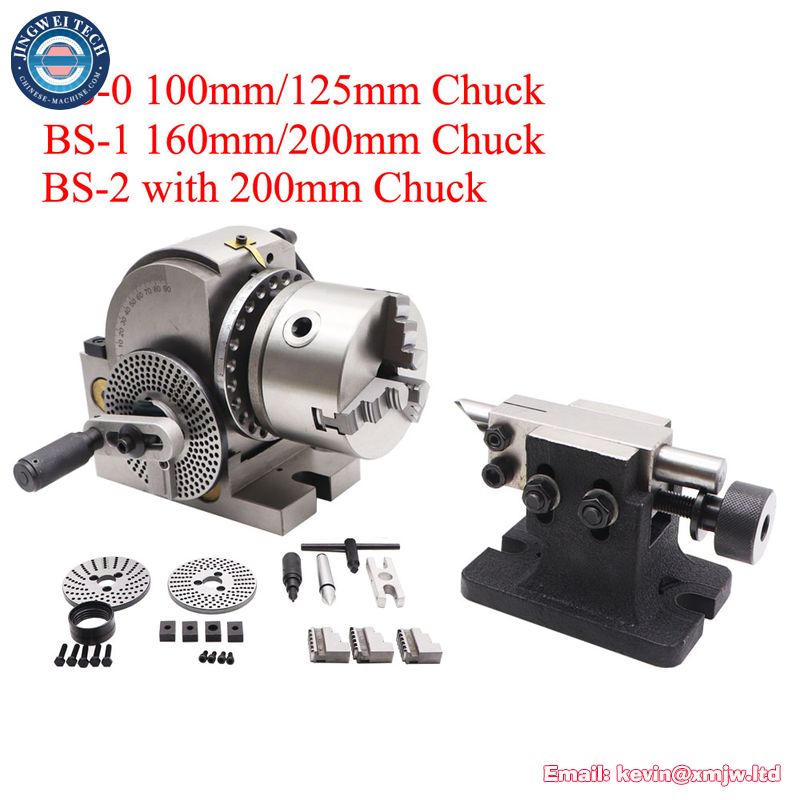

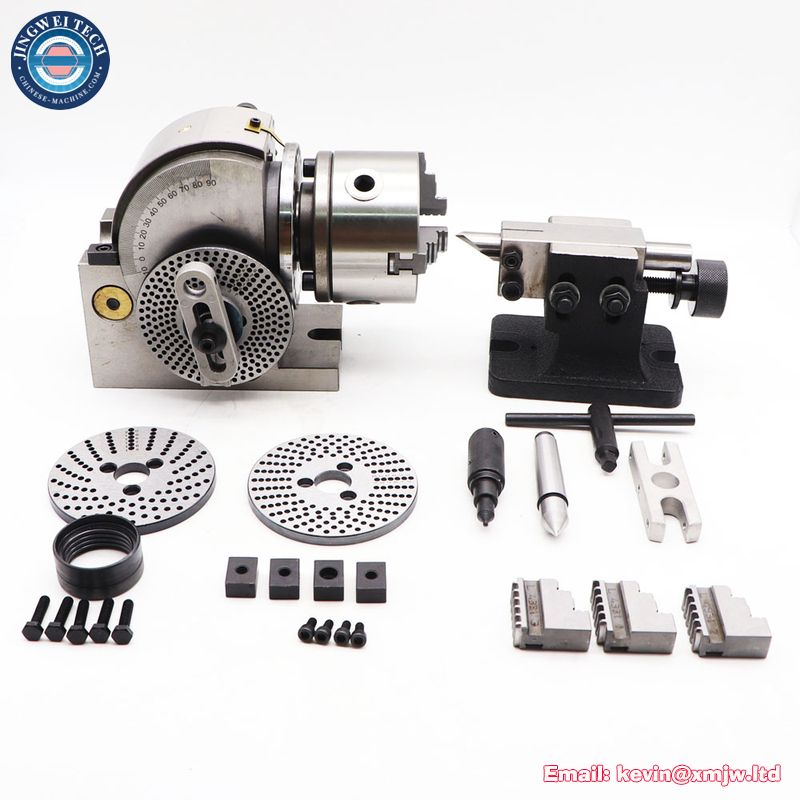

Package Included :

1 x Head Stock

1 x Tail Stock

1 x Dividing Plates A

1 x Dividing Plates B

1 x Dividing Plates C

1 x 3 Jaw Chuck (4 Inch or 5 Inch or 6 Inch)
